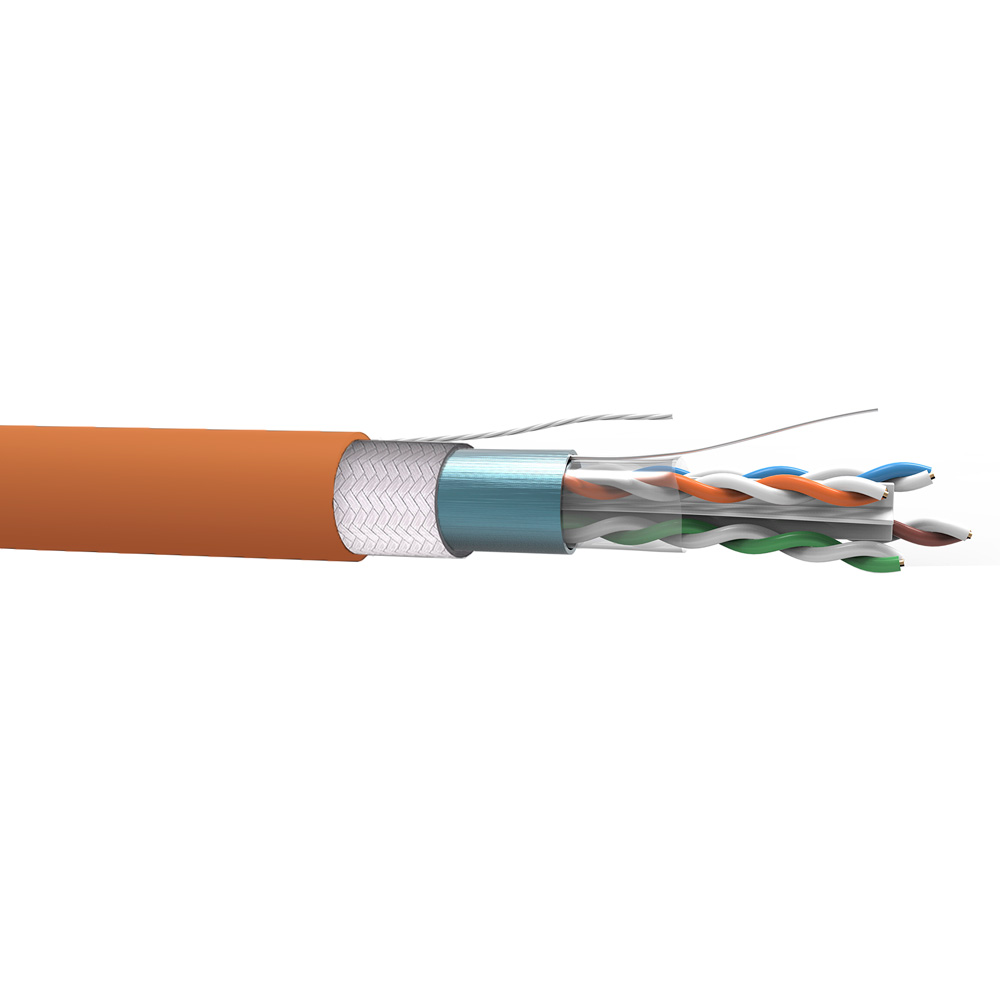

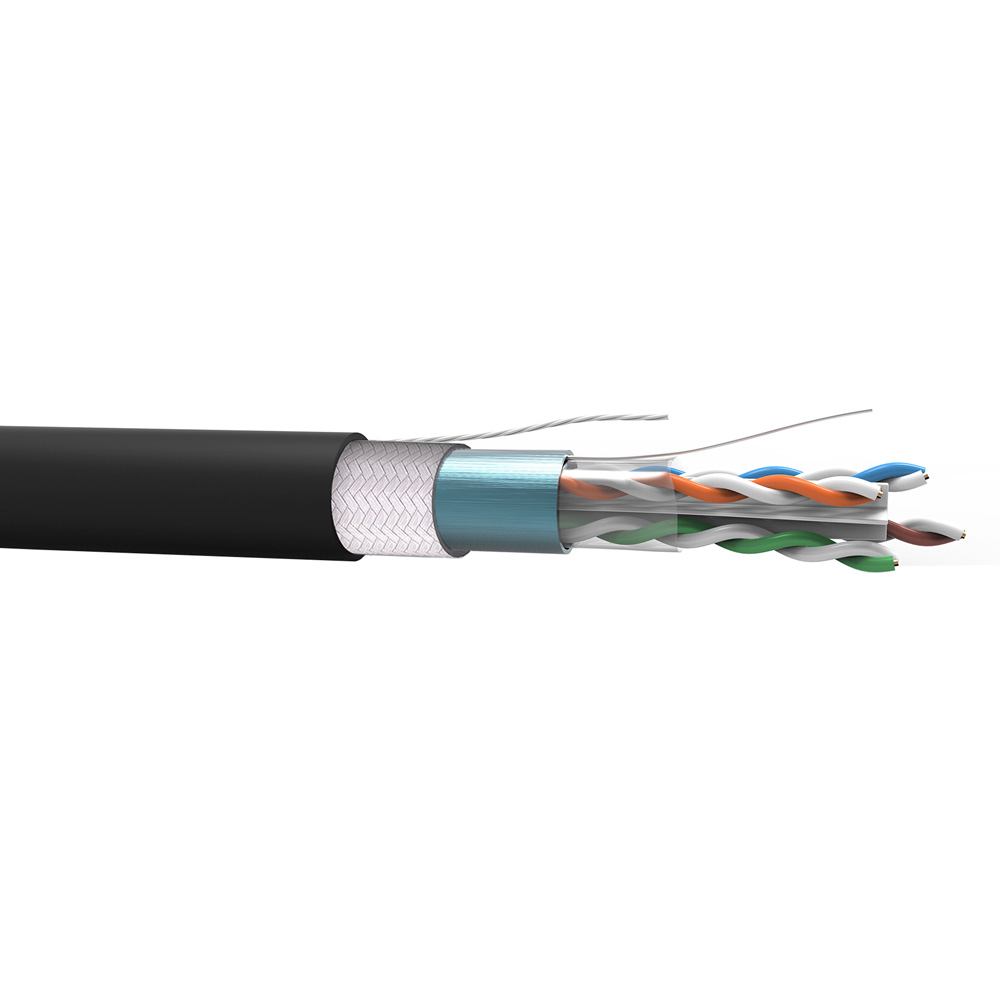

LAN CABLE _ Cat6 SFTP



Application

indoor and outdoor installation

Gigabyte Ethernet Networks

For mobile or flexible systems

Industrial Networks

laying with air blown

For direct connector assembly

Simple installation and usage

Features

High quality row materials

High Frequency

99.99% Pure Copper

Passed fluke Machine tests

Containing a drain wire

Halogen free and non-corrosive fire gases by LSZH Sheath

Low fire load for high safety requirements

Suitable bending radius



  • Possibilities
  • Technical Specifications
  • Description
  • key words
  • User Comments

 Available with LSZH, PE or other jacket for flame retardant or any other

features Available with special Design according to the customer request

Delivery length upon customer request. (Normal Length are 100, 305,

500 meter) Other packing and color coding is available according to the

customer request



Recommended

Kind of Standards

ANSI/TIA-568-C.2

Construction

Conductor Material.

Solid Pure Copper

AWG

23

 Insulation Material

HDPE

Cross Filler Material

PE

Wrapping

Polyester Tape

Drain Wire

CCA

Shield

Aluminium Foil Tape

Braid

Aluminium Wire

Ripcord

Yes

Jacket Material

PVC, PE, LSZH or any

Jacket Thickness

0.56 mm

Outer Diameter

7.5 ±0.5 mm

Weight

55 g/m

Technical Performances

Test By Fluke

Pass for 90 Meter

Headroom

Min. 5 dB

Frequency

250 MHz

Min. Bending Radius

4*Dia.

Operation Temp.

-20 to +75 °C


  •

  •
